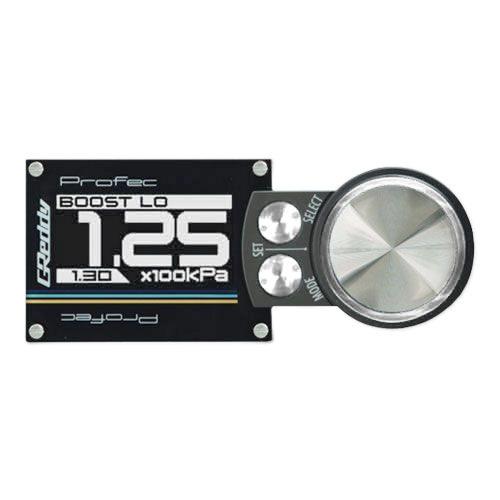

GREDDY PROFEC BOOST CONTROLLER WHITE
GREDDY PROFEC BOOST CONTROLLER WHITE
Unique compact OLED Display and improved CPU processor improve performance and stability. And the new layout improves usability.
Slim compact Control Unit mounts easily in the driver compartment, either flush mounted or with the included adjustable bracket.
Bright OLED screen makes easy work of programing and displaying boost - (in Numeric, Bar-Graph or Graphical modes) [kPa or PSI]
Faster CPU processor and new, smaller Solenoid valve improve boost response and control for the most stable boost curves found in a Profec.
Intuitive program screens with simple Dial and button controls.
Separated, waterproof Sensor Unit with integrated 300kPa (43.5psi) high-performance pressure sensor remains in the engine compartment, for simple installations.
3 Boost Settings - LO, HI and a timed Scramble Boost Mode (from 1-99sec.)
Configurable for both actuator-style and external wastegate types
Last Boost and Peak Hold Boost Recall, well as a Warning Alert and saftey Limiter functions
Data Lock and 180degree mounting options.
The Profec is programed with the same 3, easy adjustments as the previous PRofec B-spec2 (SET, GAIN, & START), but refines the programing to one simplified screen, for simple intuitive control.
(While the PEAK recall in the programing screen helps the programer see what boost level was.)
SET % = Controls the target boost level. As simple as a manual boost controller. As you increase this percentage from 0-100% it increase boost over factory wastegate spring boost level
GAIN % = Controls the Wastegate response (stability) at higher RPMs. So if the boost level tends to drop as the RPM rises, you can set the GAIN % to a higher positive value (0 to +100) And if you want the boost to drop at higher RPMs you can set the GAIN % to a more negative valve (0 to -99)
START (Boost) = [CONTROL] Is a boost pressure value that determines Boost Response (or when the boost controller starts to open and close the wastegate.) This is generally set 3-6psi (1-2kPa) below the desired boost level. (if the boost "Spikes" then regains control, it is likely the START valve is too high and should be set lower.) Under the START [NORMAL] setting (if used) the wastegate is allowed to open gradually to the START boost value (more similarly to a manual boost controller. This maybe ideal for more complex sequnetial turbo set-ups.)
- Display Size (mm): 89 x 36.5 x 22.8
- Max boost : 3bar (43.5psi)
- Low, High and Scramble Boost Settings
- (Lo. & Hi.) Set % - to increase boost
(higer number, higher the boost over base boost level)
- Gain % - wastegate response adjustment
- Start Boost - inital boost response adjustment
This is the newest version TRUST Profec. The Profec series of Electronic Boost Controllers have been continually evolving over the years and there are many significant improvements in the new model over the last Profec B Spec-II.
Most notable is the large OLED display screen
with dial and slim face. The slim design allows the item to be mounted on any flat surface or with the use of a mount. The display screen allows for easy viewing and for more options of viewing. Boost can be viewed in numeric, a bar-graph or graphical. In addition, scramble mode, warning signs and limiters settings will appear when these situations arise.
On the inside of the Profec, improved CPU processing has increased stability and performance.
The solenoid size has also been significantly reduced and the power unit has also been moved to the engine bay and therefore only the power harness needs to run through the firewall.
Get the most out of your turbocharged engine with this great new development from TRUST!
